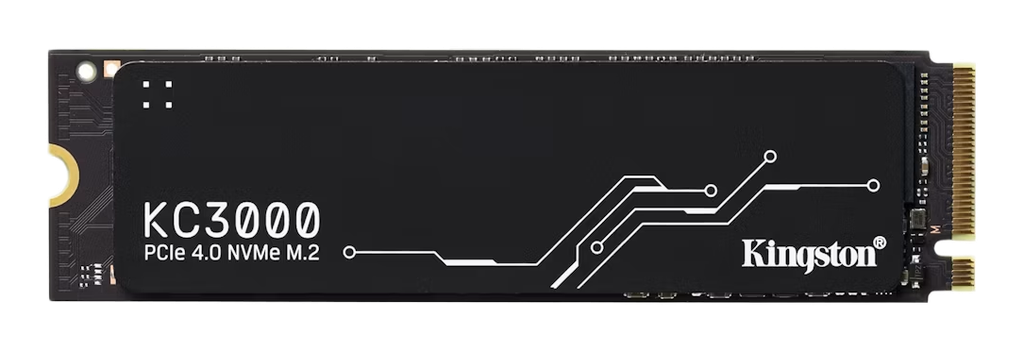

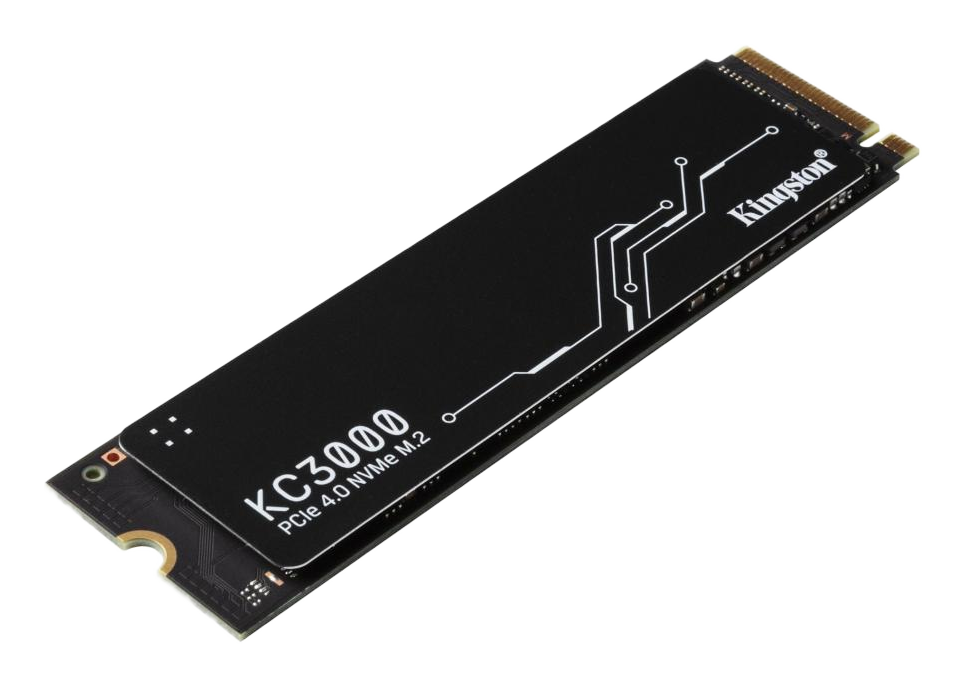

Kingston KC3000 4000GB

The Kingston KC3000 4000GB integrates the Phison PS5018-E18 controller with Micron’s 176-layer B47R 3D TLC NAND, using an 8-channel controller and a dedicated DDR4 DRAM cache to manage mapping tables. By utilizing the full 1600 MT/s bus speed of the Micron NAND, the drive can saturate the PCIe Gen4 x4 interface and deliver sustained high throughput rather than relying solely on pseudo-SLC caching. The 4000GB variant typically uses a double-sided PCB layout, which may present installation challenges in ultra-thin laptops with single-sided clearance requirements. Thermally, the Phison E18 controller runs hot under sustained loads; the KC3000 includes a low-profile graphene-aluminum heat spreader mainly for heat distribution. For sustained sequential write workloads, improved stability is often reported when pairing the drive with a dedicated motherboard heatsink or active airflow.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 1.4
• Controller: Phison PS5018-E18 (8-channel, ARM Cortex-R5)
• NAND: Micron 176-Layer 3D TLC (B47R)
• Sequential Read/Write: 7,000 MB/s / 7,000 MB/s
• Random 4K Read/Write: Up to 1,000,000 IOPS
• Endurance: 3,200 TBW (Total Bytes Written)
• Physical Traits: Double-sided M.2 2280 (4TB model), Graphene-aluminum heat spreader, DDR4 DRAM Cache

Hardware Alternatives

• Seagate FireCuda 530: Utilizes the same E18/Micron 176L hardware but features slightly higher endurance ratings due to custom firmware validation.
• Corsair MP600 PRO XT: A direct hardware equivalent, often distinguished only by its heavy pre-installed aluminum heatsink.
• Sabrent Rocket 4 Plus: Another E18-based sibling, offering similar throughput metrics.
• Samsung 990 PRO 4000GB: Competes in the same performance tier but uses Samsung’s proprietary Pascal controller and V-NAND.
• Western Digital WD_BLACK SN850X 4000GB: Offers comparable random I/O performance using Western Digital’s in-house controller and BiCS NAND technology.
• Kingston FURY Renegade 4000GB: Almost identical to the KC3000 in hardware; primary technical distinction is increased over-provisioning, affecting usable capacity and endurance ratings.
