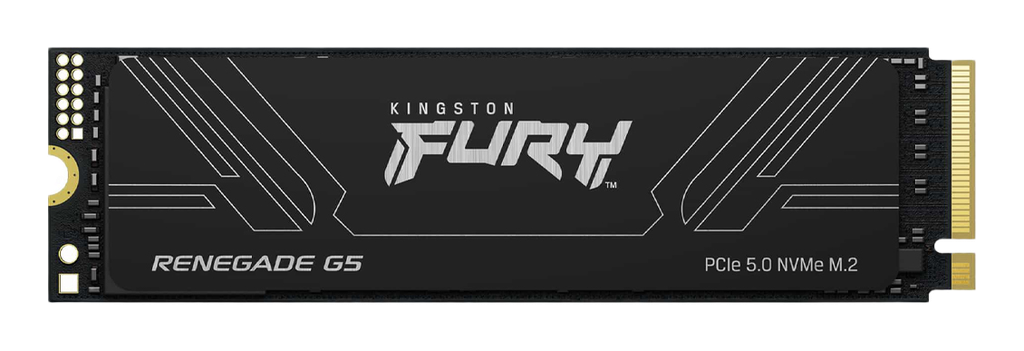

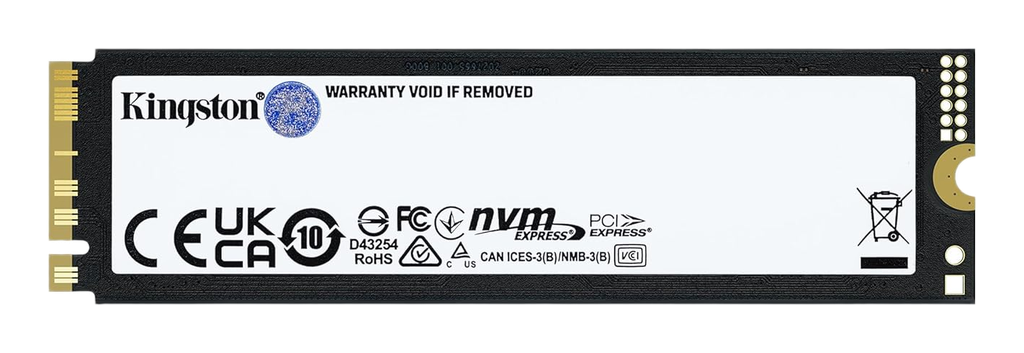

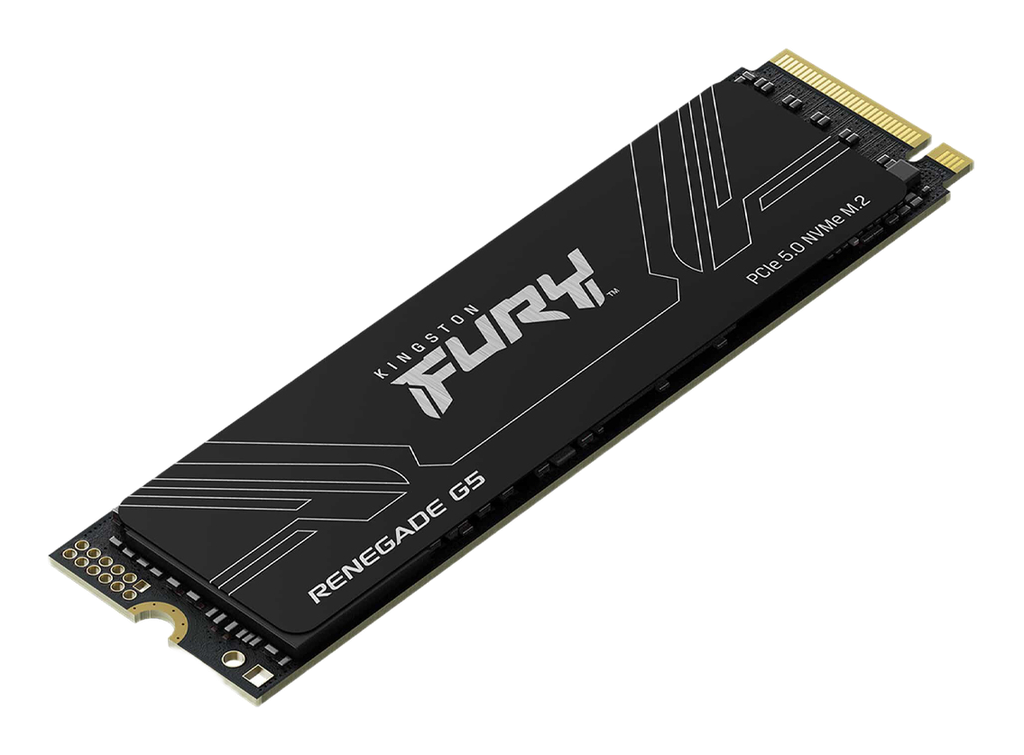

Kingston FURY Renegade G5 2000GB

The Kingston FURY Renegade G5 (2000GB) is a PCIe 5.0 x4 NVMe 2.0 M.2 2280 drive built around the Phison PS5026-E26 8-channel controller and Micron 232-layer 3D TLC NAND. It targets very high sequential throughput (14,700 MB/s read, 14,000 MB/s write) by using NAND running at 2400 MT/s and includes an LPDDR4 DRAM cache. Thermal management is a primary operational constraint due to higher controller power draw, and this iteration belongs to the "Max14um" tier of Gen 5 drives.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Controller: Phison PS5026-E26 (8-channel)
• Controller process node: 12nm
• NAND: Micron 232-Layer 3D TLC
• NAND transfer rate: 2400 MT/s
• Sequential Read: 14,700 MB/s
• Sequential Write: 14,000 MB/s
• DRAM Cache: Yes (LPDDR4/4X)
• Form Factor: M.2 2280 (Double-sided likely at 2TB capacity)
• Encryption: TCG Opal 2.0 supported

Hardware Alternatives

• Crucial T705 2000GB: Uses the same controller and NAND generation with similar "Max14um" speed targets and a closely matched architecture.
• Corsair MP700 PRO: Another E26-based design reaching the high GB/s tier; differences are mostly in firmware tuning and cooling solutions.
• MSI Spatium M570 PRO: Shares the core Phison E26 architecture and is often distinguished by a large reference heatsink design.
• Samsung 990 PRO 2000GB: A PCIe 4.0 alternative that competes on random I/O performance and power efficiency despite lower sequential throughput.
