Kingston KC3000 2000GB

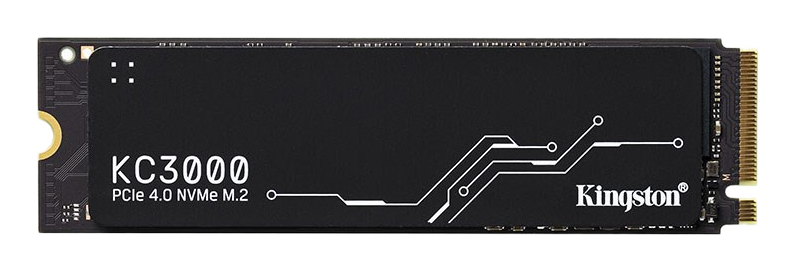

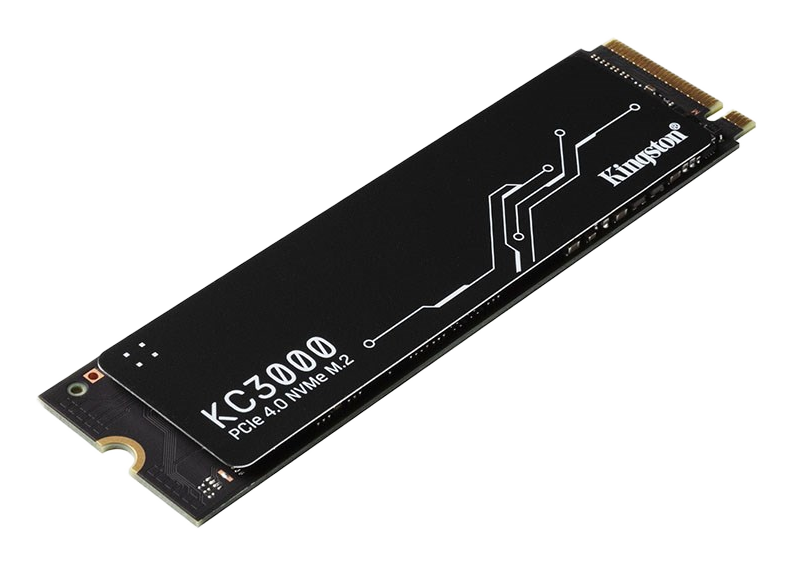

The Kingston KC3000 2000GB uses the Phison PS5018-E18 controller paired with Micron 176-layer (B47R) 3D TLC NAND in an 8-channel design with a dedicated DDR4 DRAM cache. The drive is tuned to saturate the PCIe 4.0 x4 interface with symmetrical read and write performance and firmware that emphasizes burst and sustained write speeds. The B47R NAND maintains high native TLC write speeds even after the pseudo-SLC cache is exhausted, making the drive suitable for write-intensive workstation tasks, high-resolution video editing, and DirectStorage-enabled gaming where random I/O performance is important. Field notes: the Phison E18 controller generates significant thermal output under load — Kingston applies a low-profile graphene-aluminum heat spreader, but a motherboard heatsink is often recommended to avoid thermal throttling. The 2000GB model uses a double-sided PCB, which can limit installation in ultra-thin laptops or M.2 slots with strict clearance.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• Sequential Read/Write: 7,000 MB/s Read / 7,000 MB/s Write
• Controller: Phison PS5018-E18 (12nm process, 5 cores)
• Channels: 8-channel controller design
• NAND Flash: Micron 176-layer 3D TLC (B47R)
• DRAM Cache: Yes (DDR4)
• Endurance: 1,600 TBW (Total Bytes Written)
• Physical Features: Low-profile Graphene aluminum heat spreader; Double-sided PCB

Hardware Alternatives

• Seagate FireCuda 530: hardware sibling sharing controller and NAND, resulting in a very similar performance profile though firmware tuning for endurance and thermal management differs.
• Corsair MP600 Pro XT 2000GB: hardware sibling with similar internal components (controller and NAND) and comparable performance characteristics.
• Western Digital WD_BLACK SN850X 2000GB: proprietary competitor using in-house controller and NAND rather than merchant-silicon architecture.
• Samsung 990 Pro 2000GB: proprietary competitor with vertically integrated controller and NAND, offering comparable throughput and IOPS.
