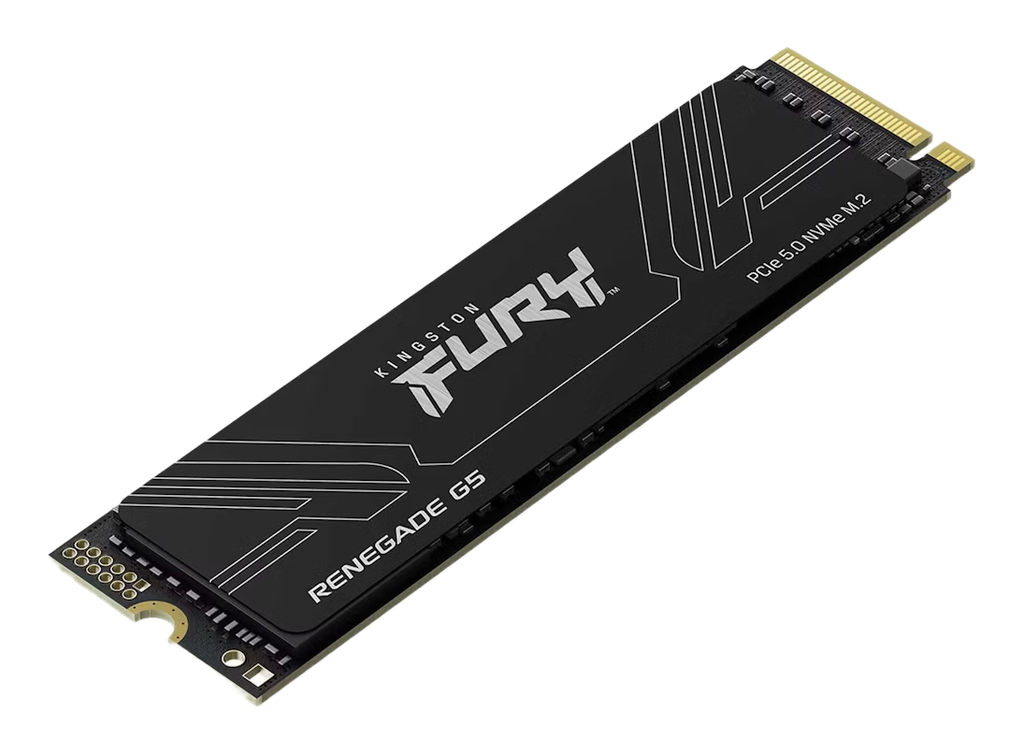

Kingston FURY Renegade G5 4000GB

The Kingston FURY Renegade G5 is a high-end PCIe 5.0 NVMe drive built around the Phison PS5026-E26 controller (12nm) paired with Micron 232-layer 3D TLC (B58R) NAND operating at 2400 MT/s. It uses an 8-channel E26 controller and a dedicated LPDDR4 DRAM cache to manage address translation and sustain high IOPS. Thermal management is a primary operational constraint: the Phison E26 generates significant heat under sustained load and can reach junction temperatures around 81°C–85°C, triggering aggressive thermal throttling. The 4TB capacity often uses a double-sided component layout, so users should verify motherboard M.2 clearance if adding third-party cooling.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Sequential Speeds: 14,800 MB/s Read / 14,000 MB/s Write
• Controller: Phison PS5026-E26
• NAND Flash: Micron 232-layer 3D TLC
• DRAM Cache: Yes (LPDDR4/LPDDR4X)
• Features: Microsoft DirectStorage optimized; available with proprietary aluminum heatsink.

Hardware Alternatives

• Crucial T700 4000GB: Uses the same E26 + Micron 232L combination; performance metrics are nearly indistinguishable.
• Corsair MP700 PRO: Another direct hardware relative targeting the 14GB/s throughput tier.
• MSI Spatium M570 Pro: Shares the architecture but often differentiates via distinct, large-volume passive cooling solutions.
