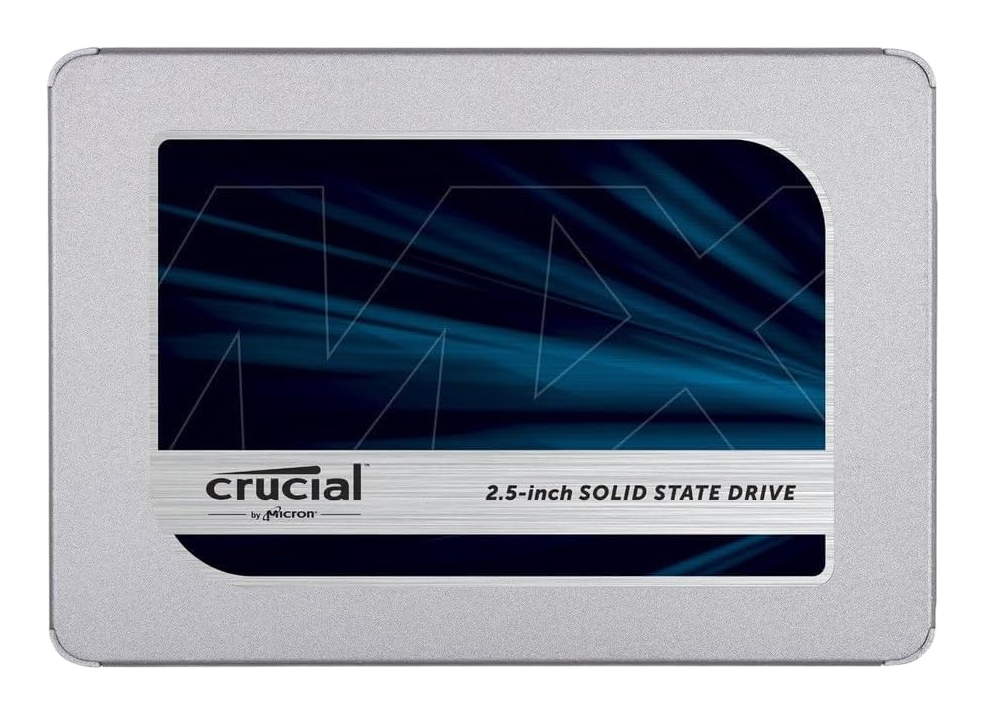

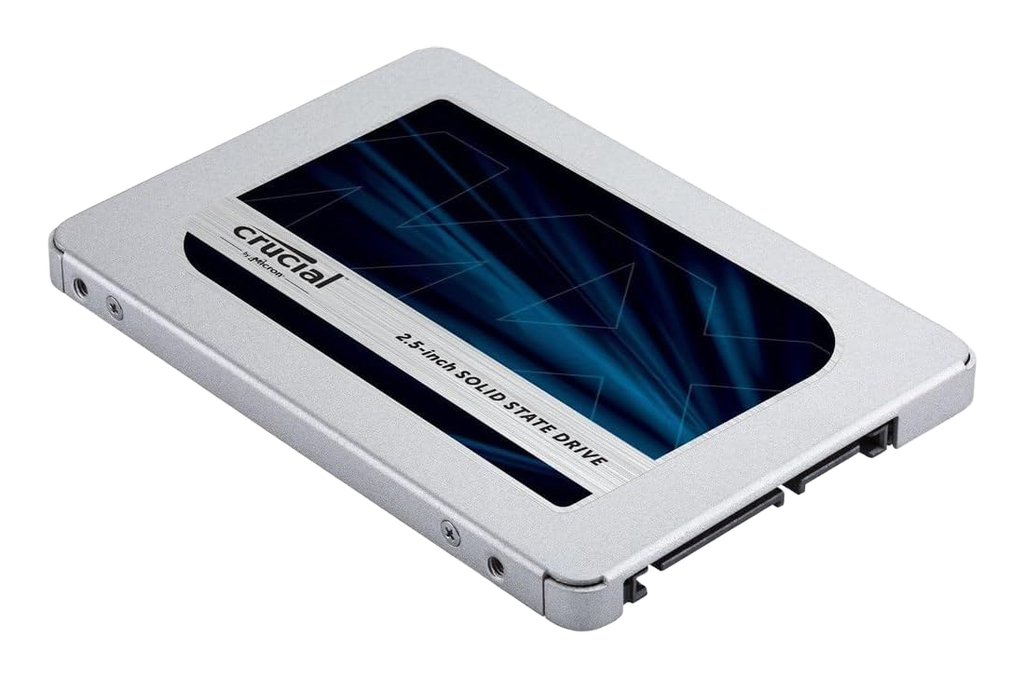

Crucial MX500 2000GB

The Crucial MX500 2000GB utilizes a mature architecture designed to saturate the SATA III 6Gbps interface, typically pairing a Silicon Motion SM2258 or SM2259 controller with Micron’s 3D TLC NAND flash. It retains a dedicated DRAM cache (DDR3/DDR3L) for random I/O performance and write amplification mitigation, supports AES 256-bit hardware encryption with TCG Opal 2.0 compliance, and has seen NAND transitions across production (64-layer to 96- or 176-layer). Some SM2259 firmware versions prior to M3CR046 were noted for higher-than-expected write amplification, so firmware checks/updates are commonly recommended. The drive includes integrated power-loss immunity.

Key Specifications

• Interface: SATA III (6 Gbps)
• Max Sequential Speeds: 560 MB/s Read, 510 MB/s Write
• Controller: Silicon Motion SM2258 / SM2259 (Revision dependent)
• NAND Type: Micron 3D TLC (Layer count varies by batch)
• DRAM Cache: Yes (DDR3/DDR3L)
• Endurance: 700 TBW
• Encryption: AES 256-bit Hardware Encryption, TCG Opal 2.0 compliant
• Feature: Integrated Power Loss Immunity (Data-at-rest protection via capacitors)

Hardware Alternatives

• Samsung 870 EVO 2000GB: The primary technical rival in the high-tier SATA segment, saturating the SATA bus but using a proprietary Samsung MKX controller and V-NAND instead of the Silicon Motion/Micron combination.
• SanDisk Ultra 3D 2000GB: Occupies the same performance bracket but relies on a Marvell controller architecture and lacks the MX500's hardware encryption support.
• Crucial BX500 2000GB: The DRAM-less derivative in Crucial's lineup; often shares similar NAND but uses XT variants of Silicon Motion controllers (e.g., SM2259XT) and omits the DRAM cache, resulting in different random I/O behavior and lower endurance characteristics.
