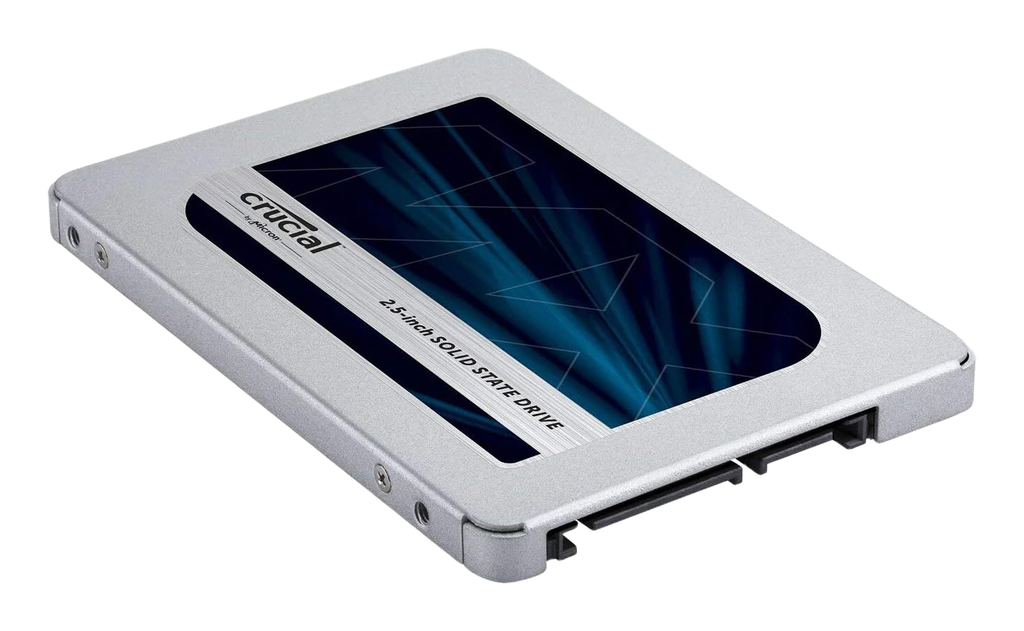

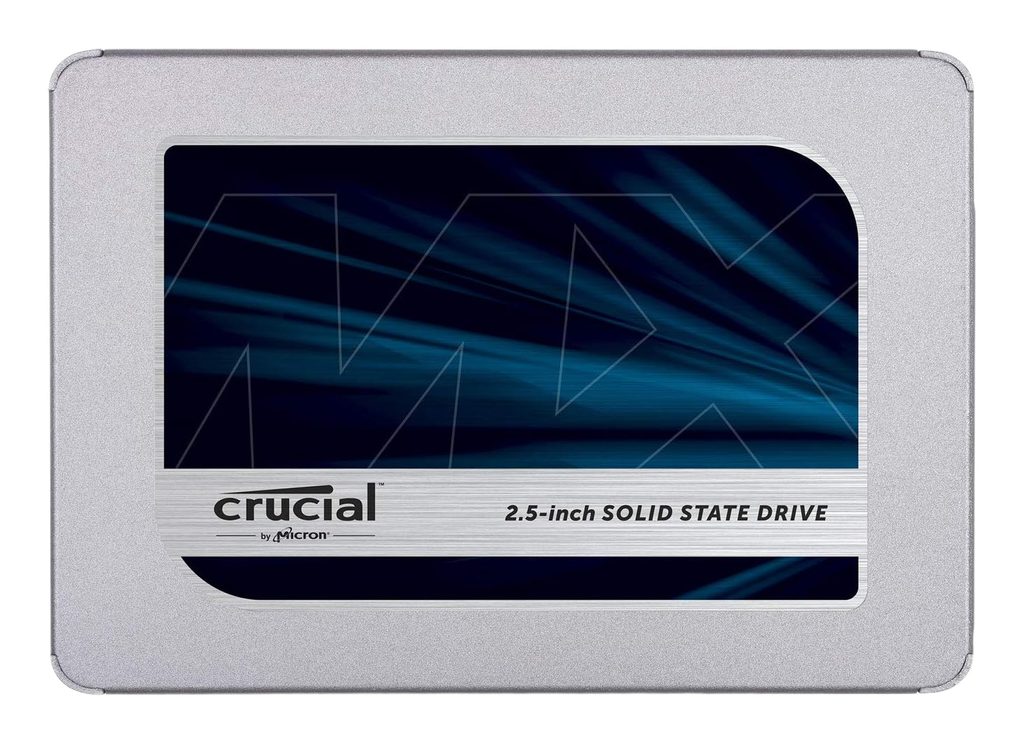

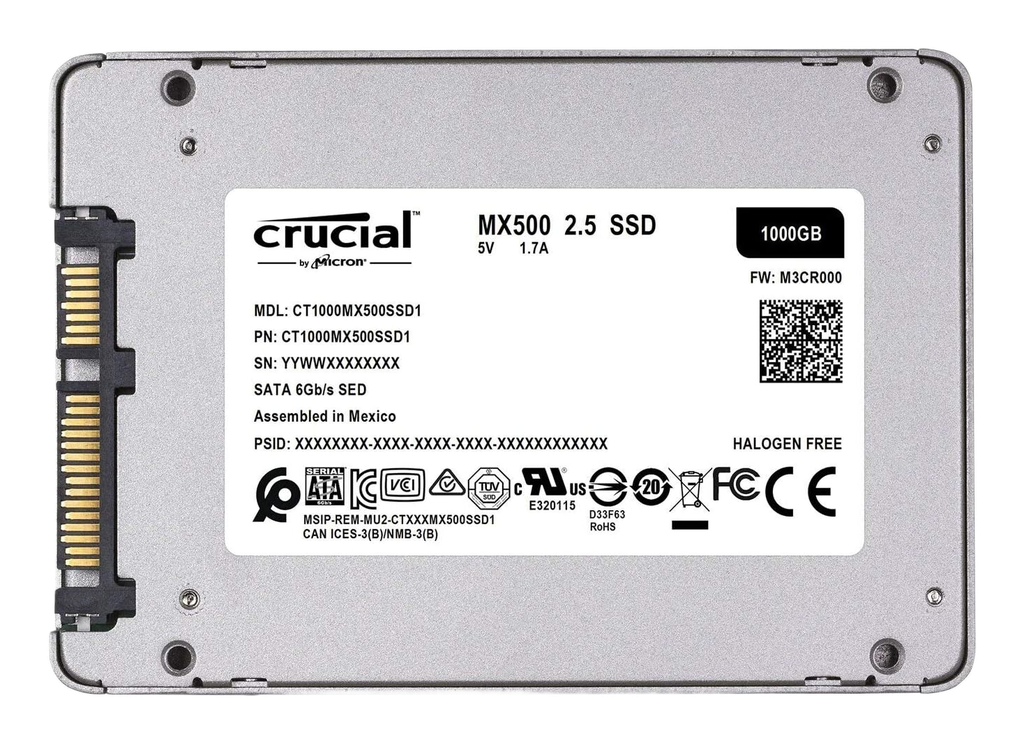

Crucial MX500 1000GB

The Crucial MX500 1000GB uses SATA III with a Silicon Motion controller (SM2258 or SM2259 depending on revision) and Micron 3D TLC NAND. It includes a dedicated DRAM cache and employs Micron’s Dynamic Write Acceleration (SLC caching) to optimize burst writes. The drive is designed to saturate the SATA 6Gb/s interface and features Integrated Power Loss Immunity via PCB capacitors; users should update firmware beyond revision M3CR033 to avoid earlier write amplification issues.

Key Specifications

• Interface: SATA III (6Gb/s)
• Max Sequential Speeds: 560 MB/s Read, 510 MB/s Write
• Controller: Silicon Motion SM2258 or SM2259 (Revision dependent)
• NAND Type: Micron 3D TLC (Layer count varies)
• DRAM Cache: Yes (Typically 1GB DDR3/DDR4 for 1000GB capacity)
• Encryption Support: AES 256-bit Hardware Encryption, TCG Opal 2.0, IEEE-1667
• Endurance Rating: 360 TBW

Hardware Alternatives

• Samsung 870 EVO 1000GB: The primary direct competitor in the high-end SATA segment, using a proprietary Samsung MKX controller and V-NAND; often demonstrates slightly lower latency at high queue depths.
• Western Digital Blue 3D / SanDisk Ultra 3D 1000GB: Closest architectural alternatives, typically employing a Marvell 88SS1074 controller with BiCS TLC NAND and a DRAM-based architecture with similar endurance.
• SK hynix Gold S31: A similar performance-tier competitor utilizing a proprietary SK hynix Quartz controller and 4D NAND, competing on sustained write performance and power efficiency.
