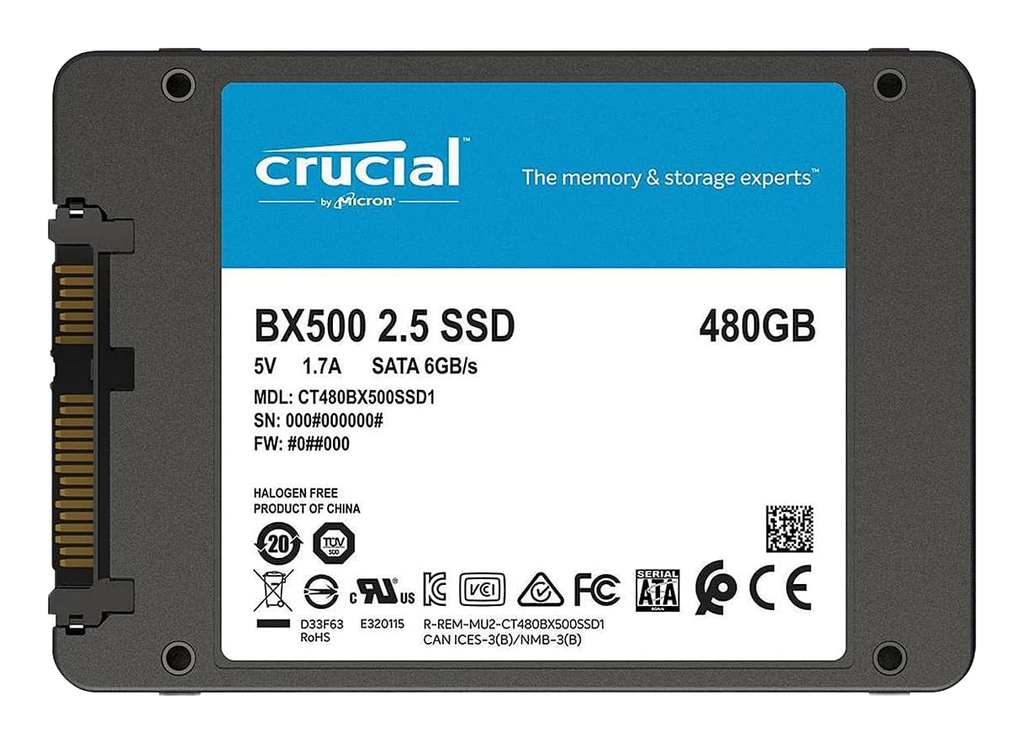

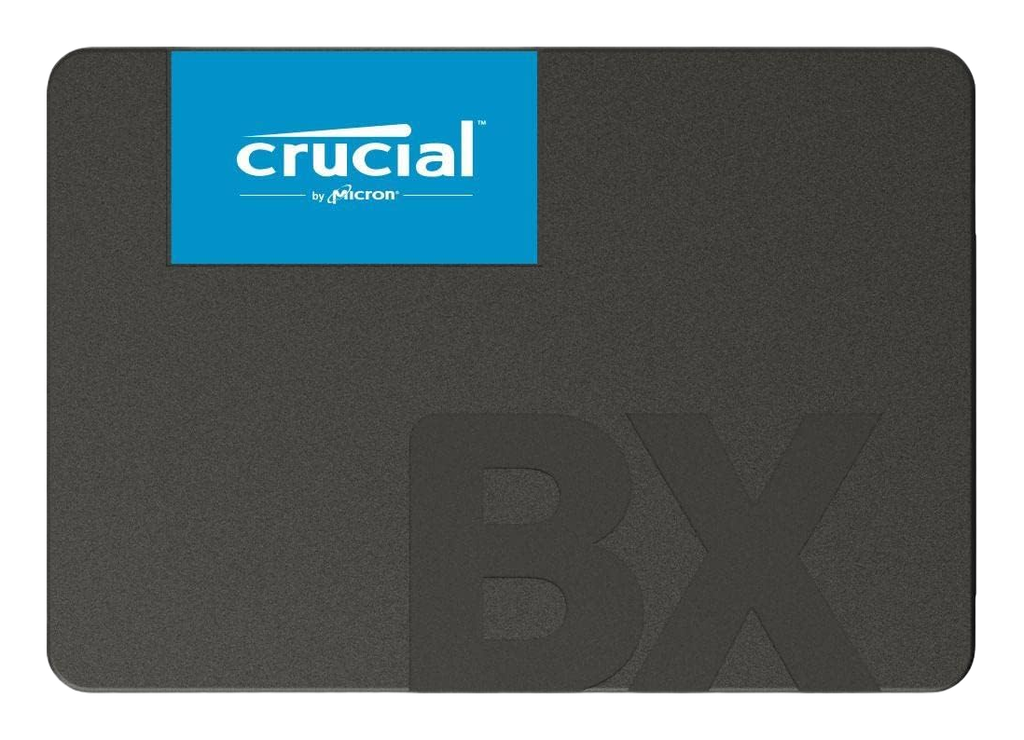

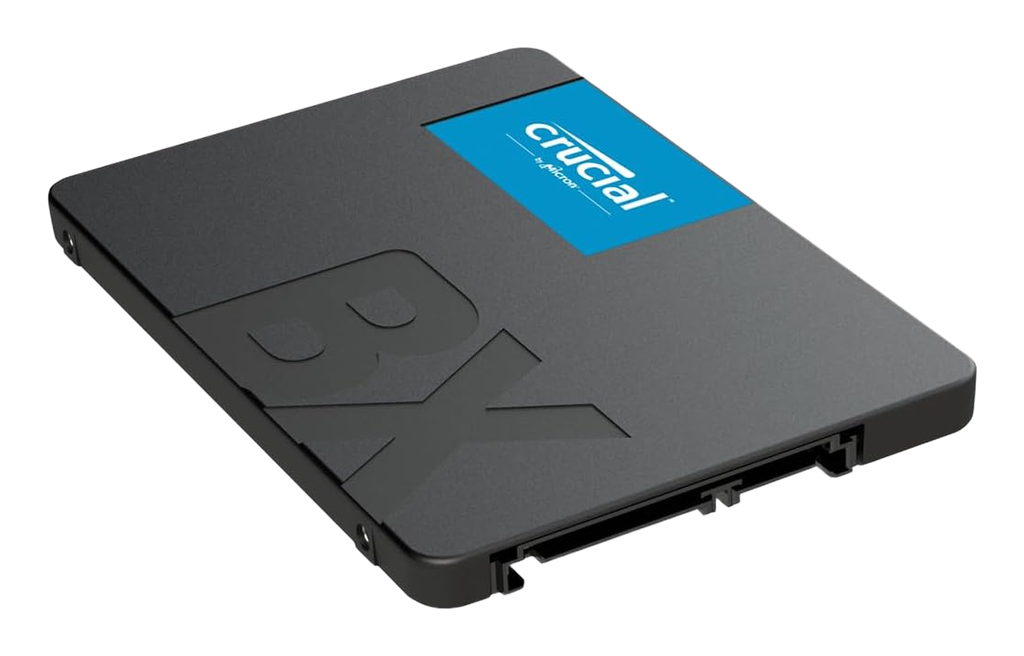

Crucial BX500 480GB

The Crucial BX500 480GB is an entry-level SATA SSD built around a DRAM-less architecture that favors simplified circuitry over sustained throughput. It typically pairs a Silicon Motion controller (SM2258XT or SM2259XT) with Micron 3D NAND and uses a pseudo-SLC caching tier to mask lower native write speeds. Lacking a dedicated DRAM chip, the drive relies on the controller's SRAM and NAND management algorithms, which increases latency on random I/O compared to DRAM-equipped drives. Internal components have varied across production (64-layer to 96-layer+ 3D TLC, and occasionally QLC in larger capacities). The drive uses a plastic enclosure that can raise operating temperatures during sustained writes and may result in thermal throttling; once the SLC cache is saturated, direct-to-NAND write speeds drop significantly.

Key Specifications

• Interface: SATA III (6Gbps)
• Max Sequential Read: 540 MB/s
• Max Sequential Write: 500 MB/s
• Controller: Silicon Motion SM2258XT / SM2259XT (DRAM-less)
• NAND Type: Micron 3D NAND (TLC variable)
• Cache: None (DRAM-less), SLC Write Acceleration
• Encryption: None (Lacks TCG Opal / AES hardware encryption support)
• Enclosure: Thermally insulating plastic chassis

Hardware Alternatives

• Kingston A400 480GB: This is the most direct architectural equivalent, often utilizing similar Phison S11 or SM2258XT controllers in a DRAM-less configuration with comparable inconsistent component sourcing.
• SanDisk SSD PLUS 480GB: Occupies the same DRAM-less SATA tier; while early revisions used MLC, modern iterations are functionally identical to the BX500 regarding performance limitations and controller logic.
• Western Digital WD Green 480GB: Shares the DRAM-less philosophy and is often geared toward light read-intensive workloads, suffering similar performance penalties during heavy sustained writes.
