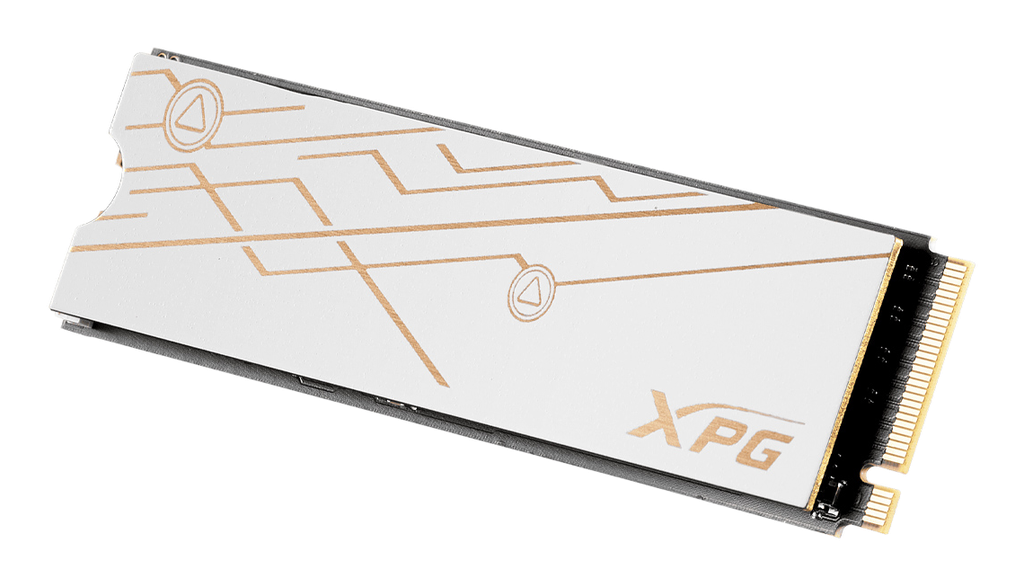

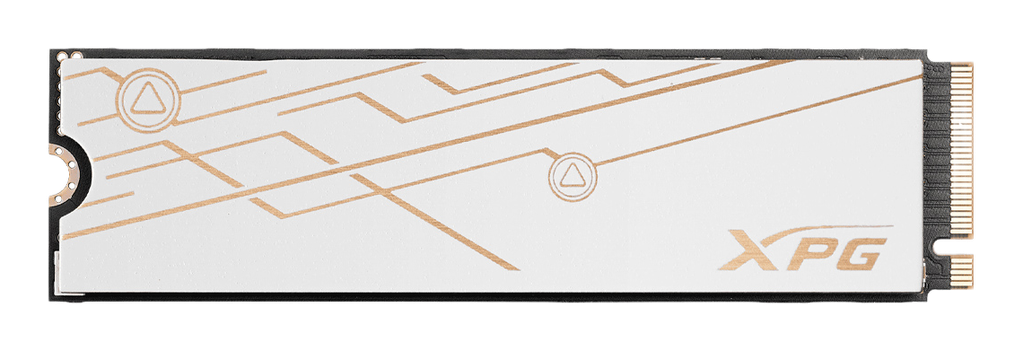

ADATA MARS 980 BLADE 1000GB

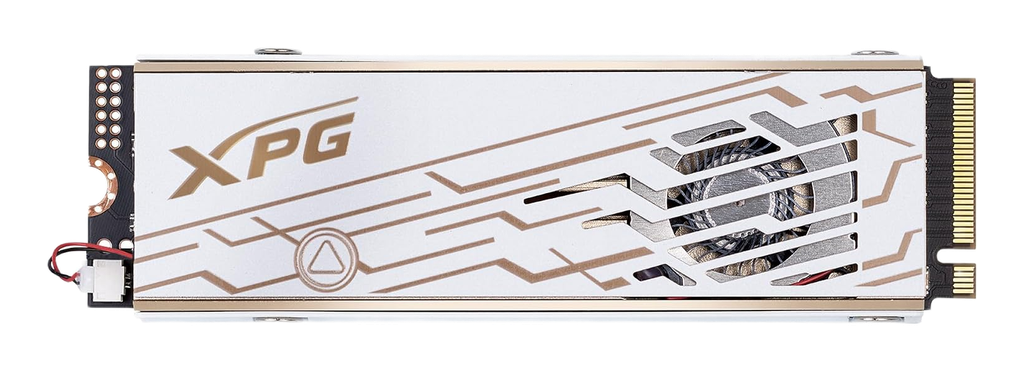

The ADATA MARS 980 BLADE uses the PCIe 5.0 x4 interface and is likely built around the Phison PS5026-E26 enthusiast-class controller paired with high-bandwidth 232-layer 3D TLC NAND. It targets very high sequential throughput (rated 14,000 MB/s read) and employs a dedicated DRAM cache to keep latency low during sustained sequential loads and random I/O. Thermal management is a key operational constraint for drives in this class; passive cooling may be insufficient for sustained write workloads, and the drive can aggressively throttle if core temperatures exceed 80°C. Install under a motherboard M.2 heatsink or use an active cooling solution to maintain sustained throughput.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Controller: Phison PS5026-E26 (High-bandwidth configuration)
• NAND Type: 3D TLC (Micron 232-Layer B58R)
• Sequential Read: 14,000 MB/s
• Sequential Write: 10,000 MB/s
• DRAM Cache: Yes (Dedicated LPDDR4/4X)
• Encryption: AES 256-bit hardware-based encryption support
• Feature Support: Microsoft DirectStorage optimized; SLC Caching

Hardware Alternatives

• Crucial T705: Direct hardware analog, sharing the same controller and NAND generation targeted at the same maximum throughput tier
• Corsair MP700 PRO: Utilizes the identical Phison E26 platform with similar sequential speed targets
• MSI Spatium M570 PRO: Close relative based on the same reference architecture, differentiated primarily by the included cooling solution
