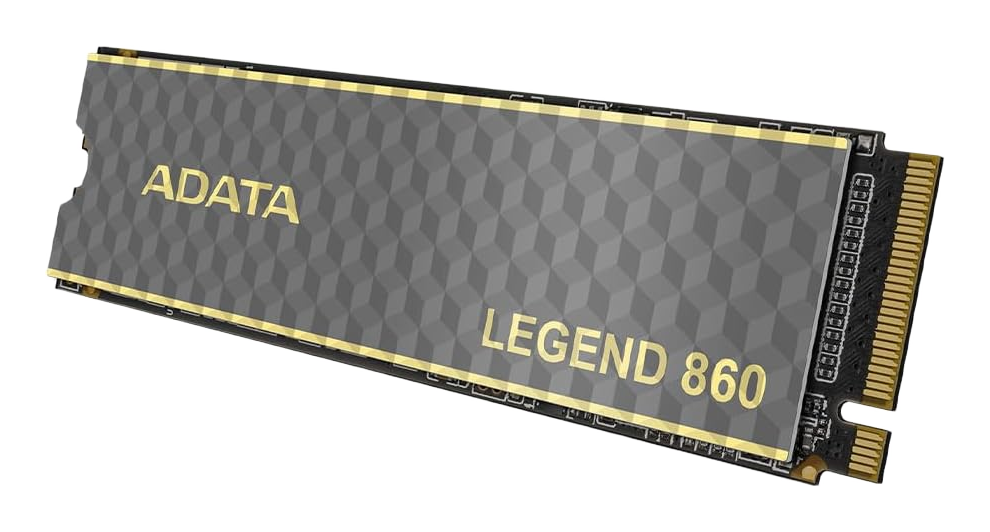

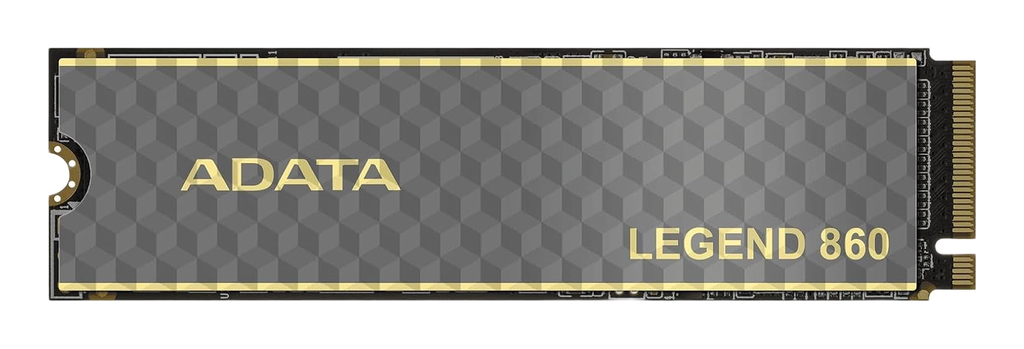

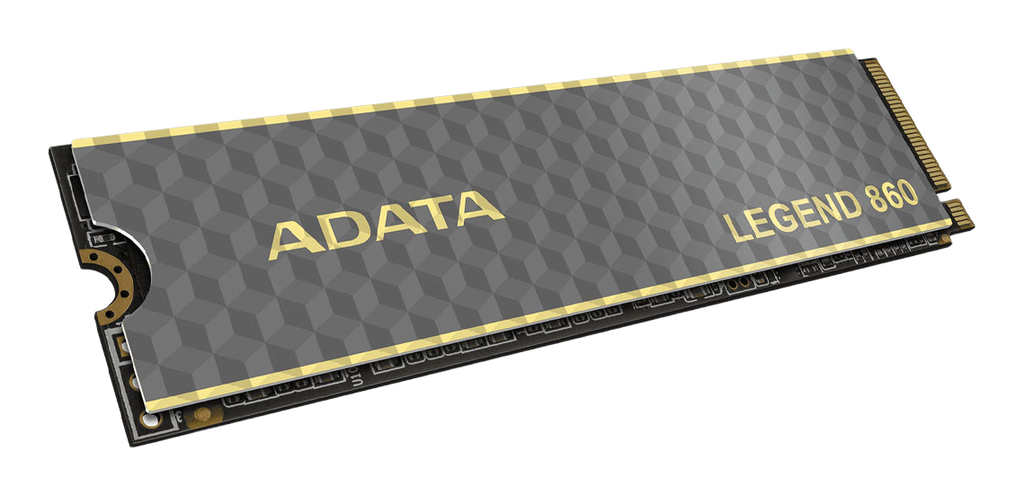

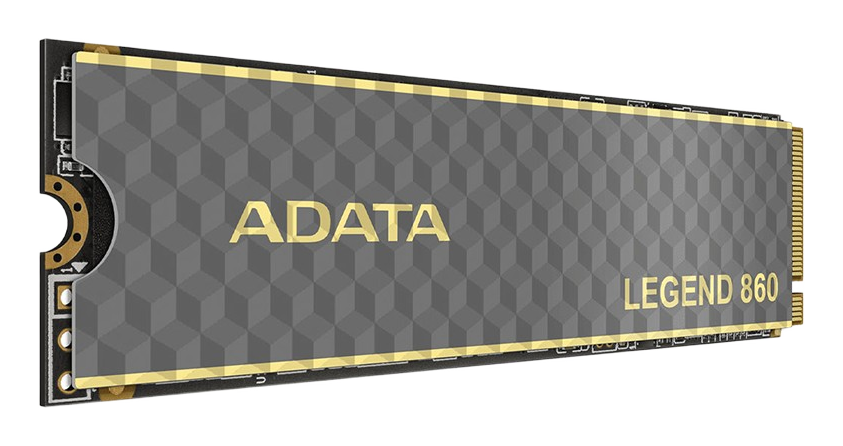

ADATA LEGEND 860 2000GB

The ADATA LEGEND 860 operates as a mid-tier PCIe 4.0 NVMe solution, typically utilizing a DRAM-less architecture that leverages Host Memory Buffer (HMB) technology to mitigate the latency penalties of lacking onboard cache. The drive is engineered to saturate the upper limits of mid-range controllers, delivering 6000 MB/s read speeds by pairing a 4-channel controller with high-density 3D NAND flash. This configuration prioritizes burst performance and high sequential throughput, optimizing the drive for read-heavy consumer scenarios such as gaming and OS boot times rather than sustained, write-intensive workstation tasks. Community analysis indicates variable component sourcing; the specific controller and NAND manufacturer may differ between batches, potentially resulting in slight variances in sustained write performance. The drive ships with a thin, pre-applied aluminum heat spreader; for enclosed environments—specifically the PlayStation 5 expansion slot—utilizing a more robust third-party heatsink or the motherboard's integrated thermal armor is recommended to maintain peak transfer rates during long install sessions.

Key Specifications

• Interface: PCIe Gen 4.0 x4 / NVMe 1.4
• Sequential Speeds: 6000 MB/s Read / 5000 MB/s Write
• Architecture: DRAM-less with HMB (Host Memory Buffer) support
• Controller: 4-Channel (Specific model varies, typically SMI or Maxio based)
• NAND Type: 3D NAND (TLC or QLC depending on revision)
• Encryption: AES 256-bit support
• Endurance: SLC Caching algorithm for write acceleration

Hardware Alternatives

• Western Digital WD_BLACK SN770 2000GB: This is the most direct architectural rival. Both drives utilize high-performance DRAM-less controller designs to achieve near-saturation of the PCIe 4.0 interface, though the SN770 relies on a proprietary SanDisk/Western Digital controller ecosystem.
• Lexar NM710: Occupies the same hardware tier, utilizing a Maxio controller (MAP1602) to deliver similar read/write characteristics without dedicated DRAM.
• Silicon Power UD90 2000GB: A close hardware relative often found with similar Phison E21T or comparable controller configurations; the UD90 and LEGEND 860 generally offer indistinguishable performance in real-world loading times, differing primarily in firmware tuning and NAND binning.
