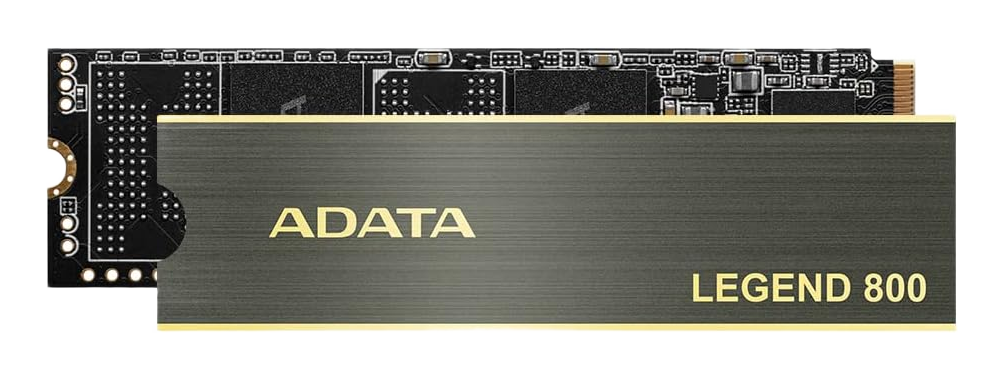

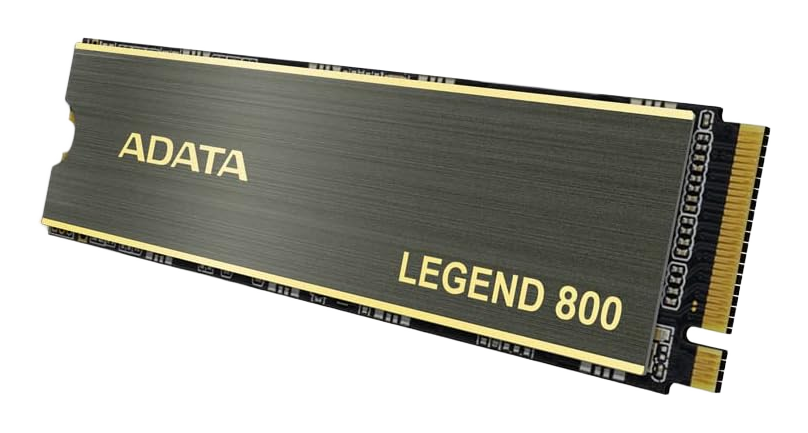

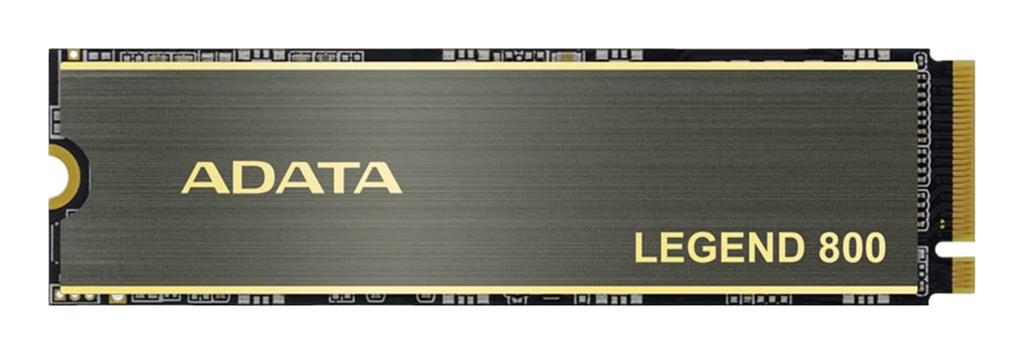

ADATA LEGEND 800 2000GB

The ADATA LEGEND 800 2000GB utilizes a DRAM-less architecture, typically anchored by the Silicon Motion SM2269XT controller paired with high-density 3D NAND (TLC). By leveraging Host Memory Buffer (HMB) technology, the drive mitigates the absence of onboard DRAM by utilizing a small portion of system memory for address mapping tables. Although it operates on the PCIe 4.0 x4 interface, the drive’s throughput is capped significantly below the bandwidth limit of the bus, effectively positioning it as an entry-level NVMe 1.4 solution that offers Gen4 compatibility with performance metrics akin to saturation-point PCIe 3.0 drives. The LEGEND 800 is frequently noted for its single-sided PCB design across the 2TB capacity, ensuring high physical compatibility with thin laptops and ultrabooks. Due to the modest sequential speeds relative to the PCIe 4.0 ceiling, the drive exhibits a low thermal profile despite the included thin aluminum heat spreader. While technically compatible with the PlayStation 5, its 3,500 MB/s read speed falls below Sony’s recommended 5,500 MB/s, making it suitable primarily for cold storage or PS4 back-compat titles rather than native PS5 gaming performance.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• DRAM-less architecture: Host Memory Buffer (HMB) support
• Sequential Read/Write: 3,500 MB/s / 2,800 MB/s
• Controller: Silicon Motion SM2269XT (Typical)
• NAND Type: 3D NAND (TLC)
• MTBF: 1,500,000 hours
• Endurance: 1,200 TBW (Total Bytes Written)
• Features: Host Memory Buffer (HMB), LDPC (Low Density Parity Check) code, single-sided PCB design, thin aluminum heat spreader

Hardware Alternatives

• Solidigm P41 Plus: This drive serves as a direct architectural relative, often utilizing the same Silicon Motion SM2269XT controller found in the LEGEND 800. However, the P41 Plus utilizes QLC NAND, resulting in lower endurance ratings compared to the LEGEND 800's TLC configuration.
• Crucial P3 Plus 2000GB: Ideally comparable in terms of market positioning and sequential throughput (approx. 5000 MB/s max, but often operating in lower tiers). Like the Solidigm alternative, the P3 Plus relies on QLC NAND, making the LEGEND 800 a distinct alternative for users prioritizing the endurance characteristics of TLC flash within the entry-level Gen4 bracket.
• Kingston NV2 2000GB: A primary competitor in the "Gen4-lite" segment. The NV2 matches the LEGEND 800's unpredictable component sourcing and budget-oriented controller specifications, though the NV2 is notorious for significant hardware variance (mixing Phison and SM controllers) compared to the slightly more consistent builds seen in the LEGEND 800 series.
