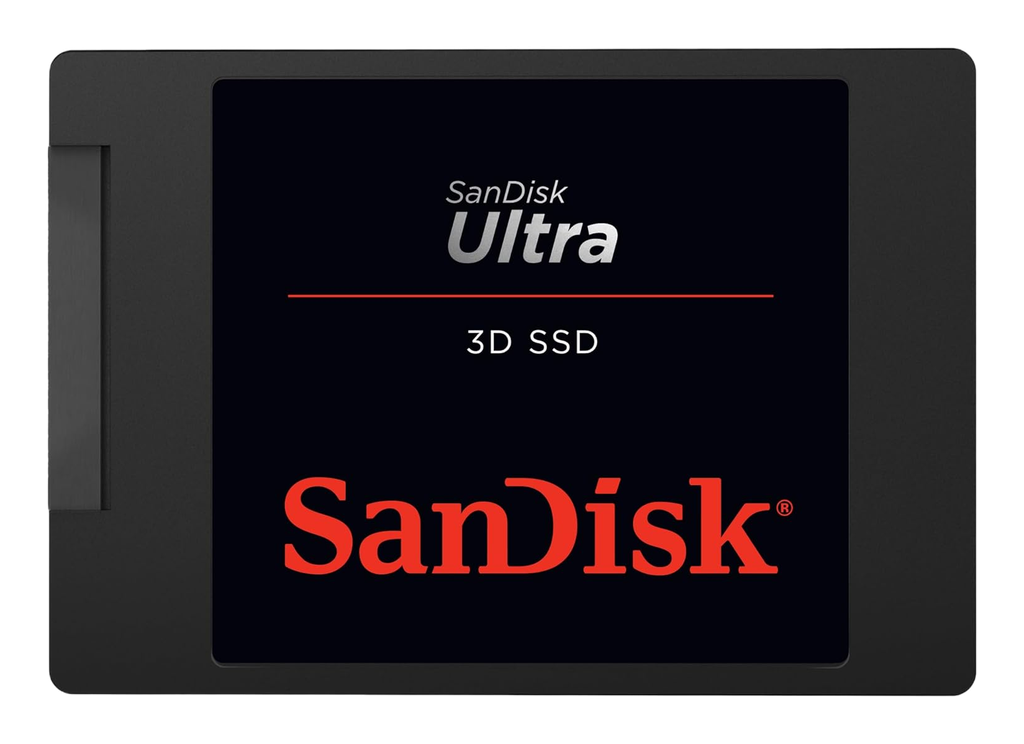

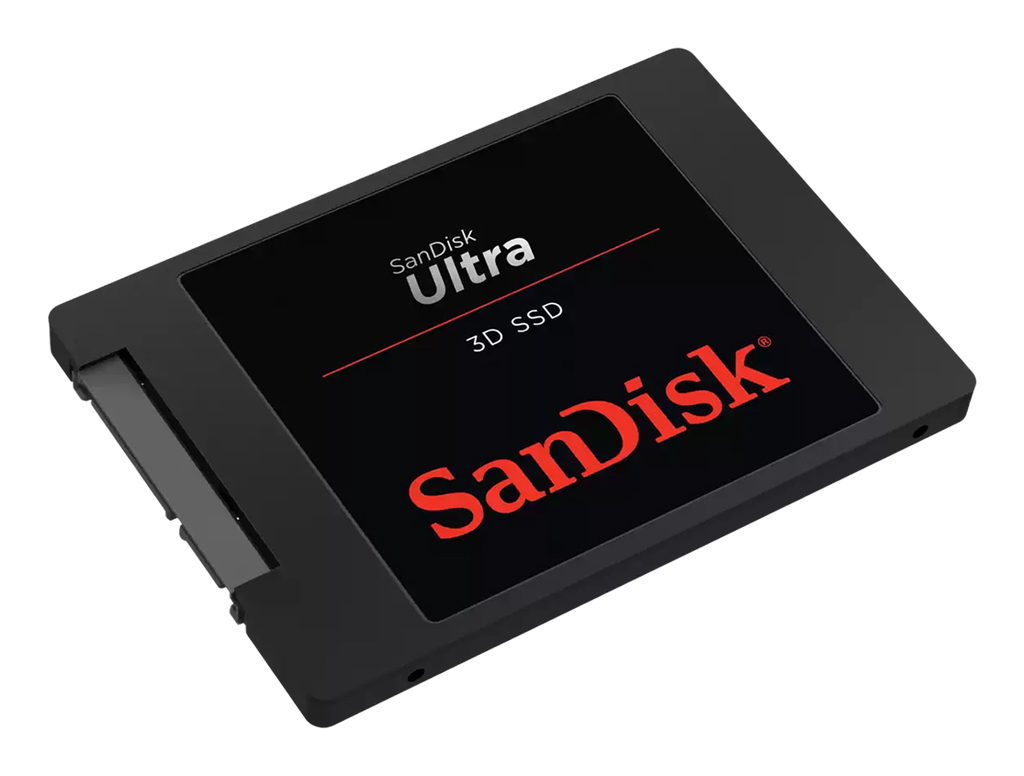

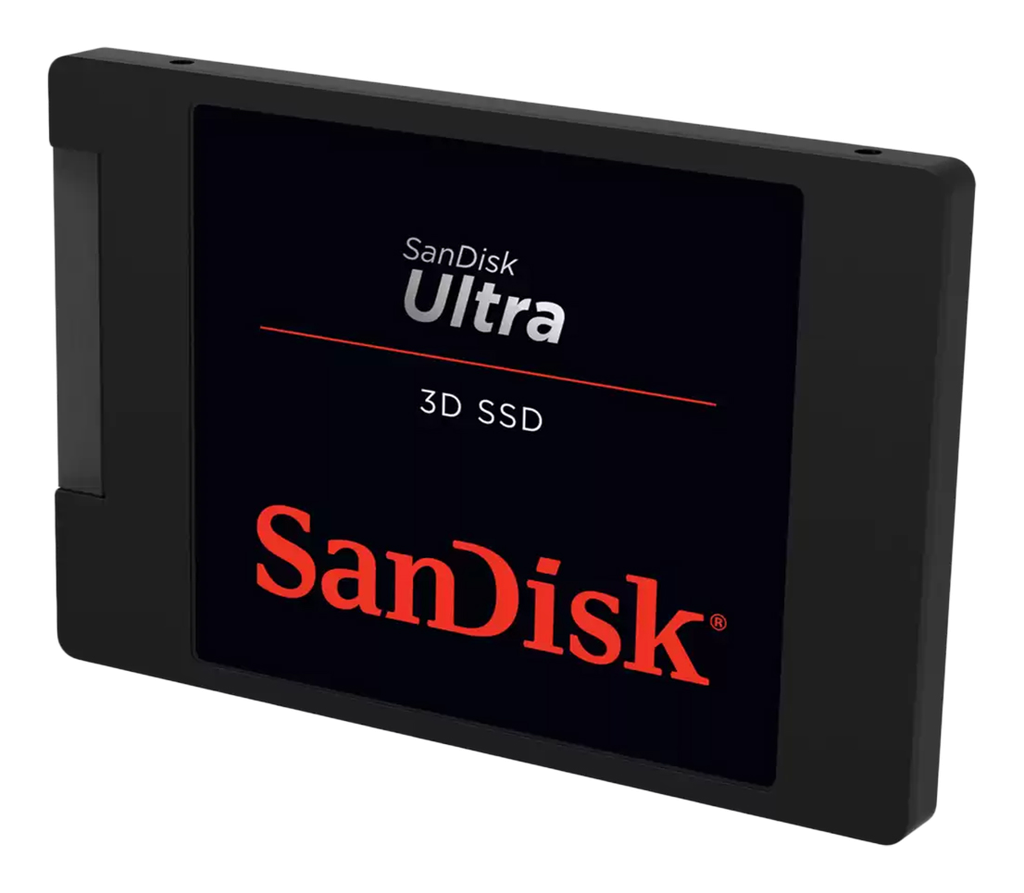

SanDisk Ultra 3D 1000GB

The SanDisk Ultra 3D 1000GB represents a mature, high-end SATA implementation, utilizing the proven Marvell 88SS1074 4-channel controller paired with a dedicated DRAM cache. While SanDisk (now Western Digital) manufactures the BiCS 3D TLC NAND internally, the architecture relies on a traditional setup that maximizes the throughput limitations of the SATA III interface rather than relying on aggressive HMB (Host Memory Buffer) techniques found in NVMe drives. Unlike many modern budget drives that have shifted to QLC flash, the Ultra 3D maintains a TLC configuration, ensuring higher endurance and sustained write speeds once the pseudo-SLC cache is saturated. Field Notes: This drive is hardware-identical to the Western Digital WD Blue 3D; the two differ only in branding and firmware identification strings. In technical circles, the Ultra 3D is noted for its BOM (Bill of Materials) stability, avoiding the component swapping issues prevalent in SanDisk's lower-tier "SSD Plus" line. It employs SanDisk's "nCache 2.0" technology, which writes data to the SLC blocks first before flushing to TLC, a mechanism that has proven robust for preventing write-amplification issues during heavy random I/O workloads.

Key Specifications

• Interface: SATA III (6 Gb/s)
• Sequential Speeds: 560 MB/s Read / 520 MB/s Write
• Controller: Marvell 88SS1074
• NAND Type: SanDisk/WD BiCS 3D TLC (Triple Level Cell)
• DRAM Cache: Yes (DDR3L or DDR4, varying by batch)
• Endurance Rating: 400 TBW (Terabytes Written)
• Encryption: Supports limited hardware encryption (varies by region/firmware)

Hardware Alternatives

• Western Digital WD Blue 3D: Shares the exact same controller, NAND, and PCB design. Performance is indistinguishable as they are essentially the same product under different labels within the parent company.
• Samsung 870 EVO 1000GB: The primary competitor in the high-performance SATA tier. The Samsung drive utilizes a proprietary MKX controller and V-NAND, often showing marginally stronger random read IOPS at low queue depths.
• Crucial MX500 1000GB: Occupies the same hardware tier, utilizing a Silicon Motion (SM2258 or SM2259) controller and Micron TLC NAND. Both the Ultra 3D and MX500 are considered the standard for saturating the SATA bus limits.
