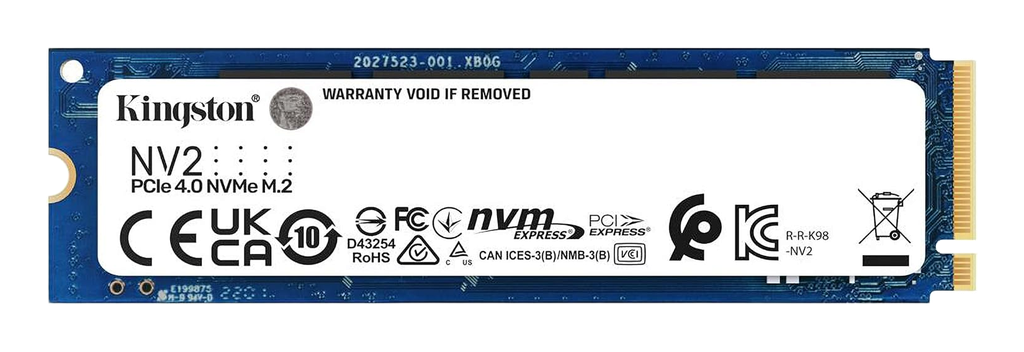

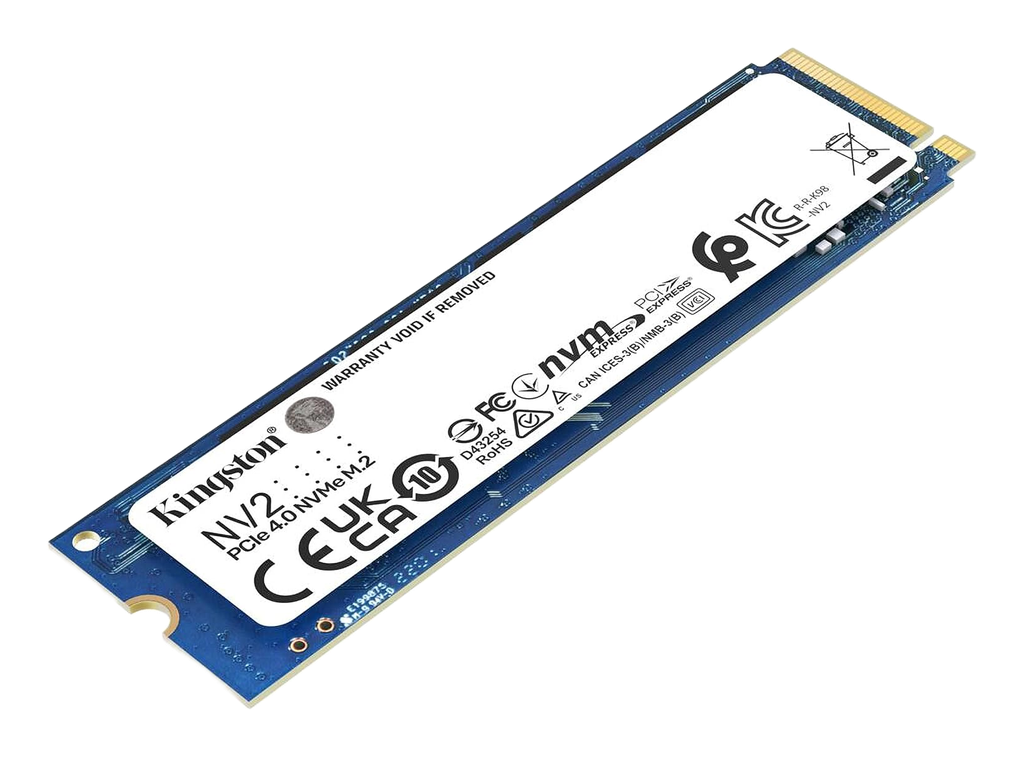

Kingston NV2 500GB

The Kingston NV2 500GB is an entry-level NVMe drive that uses a PCIe 4.0 x4 interface but has sequential throughput effectively capped near PCIe 3.0 saturation. The drive is built on a variable hardware platform, with common controller choices including the Phison PS5021-E21T or Silicon Motion SM2267XT and NAND that may be 3D TLC or QLC. It is DRAM-less and relies on Host Memory Buffer (HMB) for address mapping, is single-sided on an M.2 2280 PCB, and has an endurance rating of 160 TBW. Field observations note notable component variability between units (affecting sustained write performance once pseudo-SLC cache fills) and generally low power draw that lets it run within thermal limits without a heatsink in typical airflow conditions.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• Sequential Read/Write: 3500 MB/s / 2100 MB/s
• Controller: Variable (Commonly Phison PS5021-E21T or Silicon Motion SM2267XT)
• NAND Flash: Variable (3D TLC or QLC)
• DRAM Cache: No (Uses Host Memory Buffer)
• Physical Layout: Single-sided M.2 2280 PCB
• Endurance (TBW): 160TB

Hardware Alternatives

• Crucial P3 Plus 500GB: A close functional relative often utilizing the same Phison E21T controller, strictly QLC-based, offering similar read behaviors but lower endurance ratings.
• Western Digital WD Blue SN580: Occupies the same entry-level PCIe 4.0 segment; uses a proprietary SanDisk controller and maintains a fixed BOM, giving more predictable performance consistency than the NV2.
• Silicon Power UD90 500GB: A direct hardware clone of the "best-case scenario" NV2 (E21T controller + TLC NAND), serving as a reference point for the Kingston drive's maximum potential performance.
