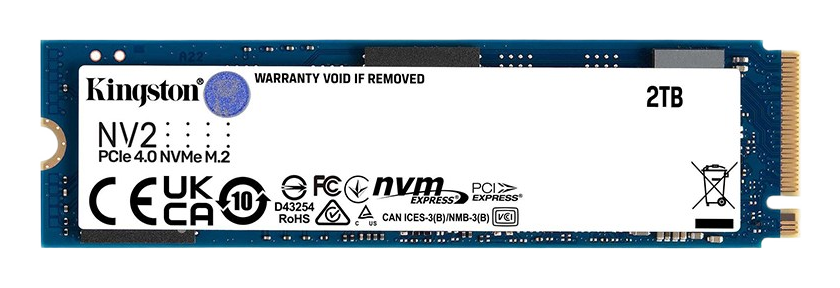

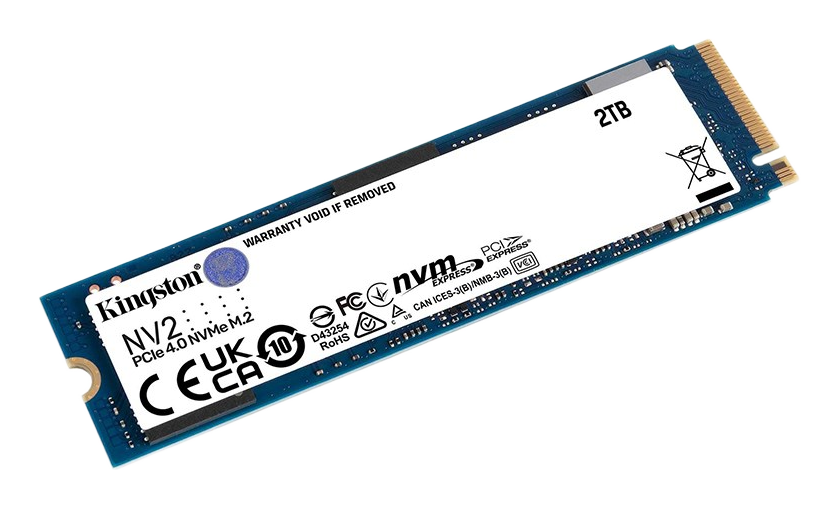

Kingston NV2 2000GB

The Kingston NV2 2000GB is an entry-level PCIe 4.0 NVMe drive built on a DRAM-less architecture that uses Host Memory Buffer (HMB). It employs a variable bill-of-materials strategy—commonly pairing a low-power 4-channel controller such as the Phison PS5021-E21T or Silicon Motion SM2267XT with high-density NAND—and the 2000GB variant is predominantly equipped with QLC NAND, which relies on dynamic pseudo-SLC caching; hardware analysis notes significant component variation across units, steep write-speed declines once the pSLC cache is exhausted, and generally high power efficiency with low thermal output allowing operation without a heatsink in typical airflow conditions.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• Sequential Read/Write: 3500 MB/s / 2800 MB/s
• Controller: Variable (commonly Phison PS5021-E21T or Silicon Motion SM2267XT)
• NAND Flash: Variable (predominantly QLC in 2TB production)
• DRAM Cache: None (HMB Support)
• Endurance: 640 TBW (Total Bytes Written)
• Physical Layout: Single-sided M.2 2280 PCB

Hardware Alternatives

• Crucial P3 Plus 2000GB: Direct hardware relative to the QLC-based NV2, typically using the Phison E21T controller with Micron QLC NAND and offering a similar throughput profile and endurance.
• Solidigm P41 Plus: Shares a QLC, DRAM-less architecture and targets the same entry-level Gen4 tier, using the Silicon Motion SM2269XT controller.
• Western Digital Blue SN580 2000GB: Similar DRAM-less, 4-channel design but uses TLC (BiCS5) NAND, providing higher sustained write performance and endurance while matching similar peak sequential speeds.
