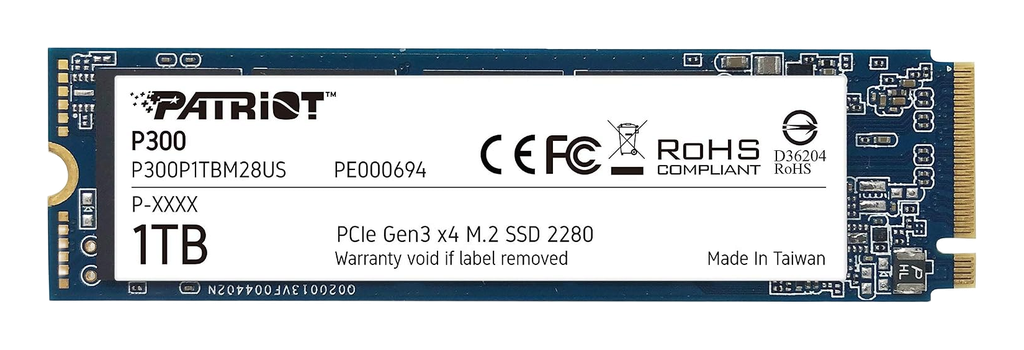

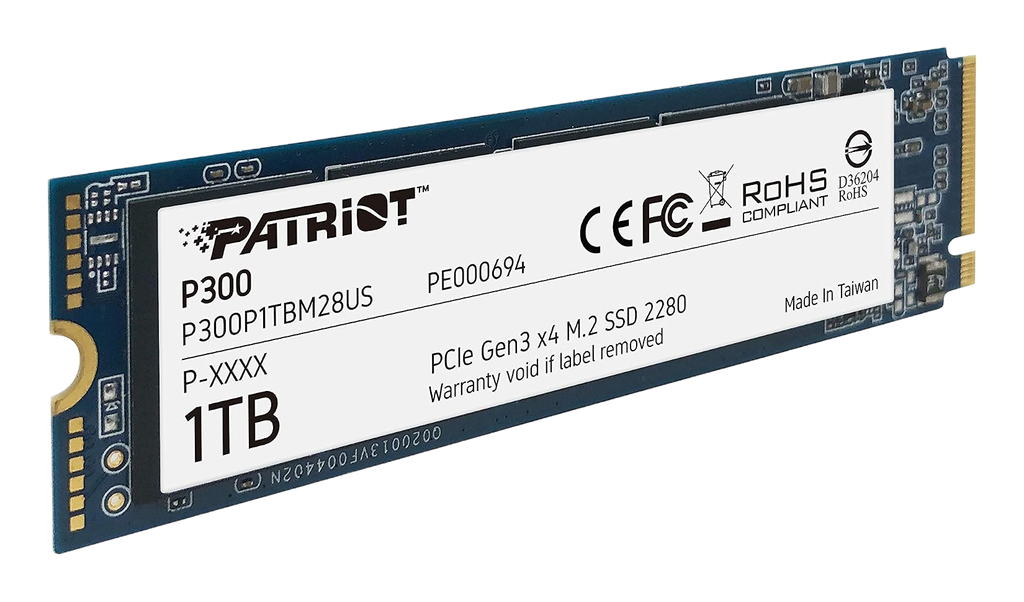

Patriot P300 1000GB

The Patriot P300 1TB is an entry-level NVMe storage solution built on a DRAM-less architecture that uses Host Memory Buffer (HMB) technology to utilize a portion of system RAM for mapping tables. The drive typically employs a quad-channel controller design—most frequently the Silicon Motion SM2263XT or the Phison E13T—paired with 3D TLC NAND and a pseudo-SLC caching tier to achieve its throughput, making it architecturally distinct from high-performance drives with dedicated DRAM. Field notes: the P300 is subject to significant bill of materials variance with Patriot sourcing different controllers and NAND packages by region and availability, which can affect thermal behavior and sustained write speeds after cache saturation; historically the US edition (often a blue PCB) and international edition (often a black PCB) have had different firmware and occasional differences in controller silicon.

Key Specifications

• Interface: PCIe 3.0 x4 (NVMe 1.3)
• Sequential Speeds: 2100 MB/s Read / 1650 MB/s Write
• Controller: Variable (Commonly Silicon Motion SM2263XT or Phison E13T)
• NAND Type: 3D TLC
• DRAM Cache: None (HMB Supported)
• Physical: Single-sided M.2 2280 PCB (High compatibility for thin laptops)

Hardware Alternatives

• TeamGroup MP33: This drive is a close hardware relative, frequently utilizing the same Silicon Motion SM2263XT controller and HMB implementation, resulting in a nearly identical performance profile.
• Silicon Power P34A60 1000GB: Shares the same entry-level PCIe 3.0 categorization and often rotates between the same DRAM-less controllers found in the P300.
• Kingston NV1: Operates in the same segment with a similar strategy of variable hardware sourcing, offering comparable burst speeds but suffering similar limitations in sustained heavy workloads.
• WD Green SN350 1000GB: A direct competitor in the DRAM-less tier; while the SN350 uses proprietary SanDisk/WD hardware, it targets the exact same casual use-case and longevity metrics.
