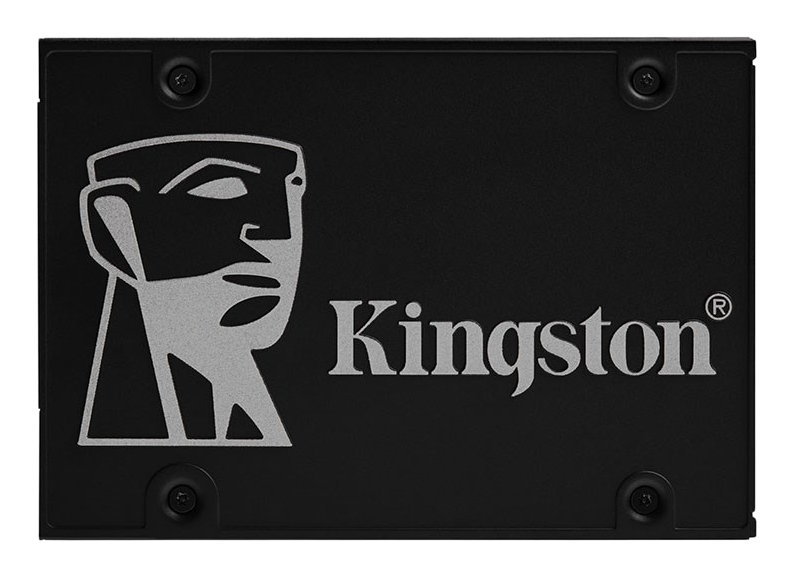

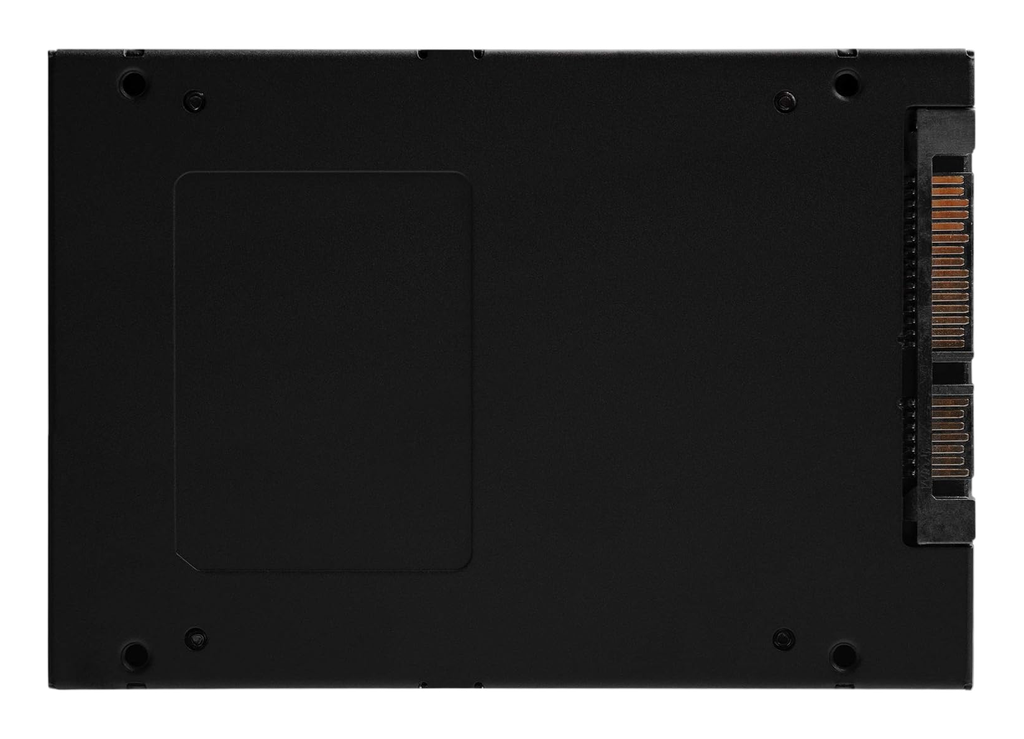

Kingston KC600 1024GB

The Kingston KC600 1024GB utilizes a mature SATA III architecture designed to fully saturate the legacy AHCI protocol bandwidth. At its core the drive employs the Silicon Motion SM2259 controller, a quad-channel chipset with a dedicated DRAM cache that ensures consistent random 4K performance and lower latency compared to DRAM-less architectures. It pairs 3D TLC NAND with a static and dynamic SLC caching algorithm to maintain sustained write throughput until the cache buffer is exhausted. The configuration prioritizes endurance and data integrity over raw speed. The drive retains full hardware-based self-encryption drive (SED) capabilities, supporting TCG Opal 2.0, XTS-AES 256-bit, and eDrive. It also uses a metal casing that acts as a passive heatsink to mitigate thermal throttling during prolonged sequential transfer workloads.

Key Specifications

• Interface: SATA Rev. 3.0 (6Gb/s) – Backward compatible to SATA Rev. 2.0
• Max Sequential Speeds: 550 MB/s Read, 520 MB/s Write
• Controller: Silicon Motion SM2259
• NAND Type: 3D TLC
• DRAM Cache: Yes
• Encryption: XTS-AES 256-bit encryption, TCG Opal 2.0, eDrive
• Endurance (TBW): 600TB (1024GB Model)

Hardware Alternatives

• Crucial MX500: The closest hardware relative, utilizing the same Silicon Motion SM2258/SM2259 controller family and often sharing identical Micron 3D TLC NAND, resulting in a nearly indistinguishable performance profile and endurance rating.
• Samsung 870 EVO: The primary performance competitor in the high-end SATA segment; uses a proprietary Samsung controller and V-NAND while occupying the same tier regarding DRAM-backed consistency and sustained write speeds.
• WD Blue 3D NAND / SanDisk Ultra 3D: Direct market competitors that utilize Western Digital’s and SanDisk’s architectures; they offer similar sustained performance but rely on different controller logic and BiCS/NAND flash.
