Kingston DC2000B 960GB

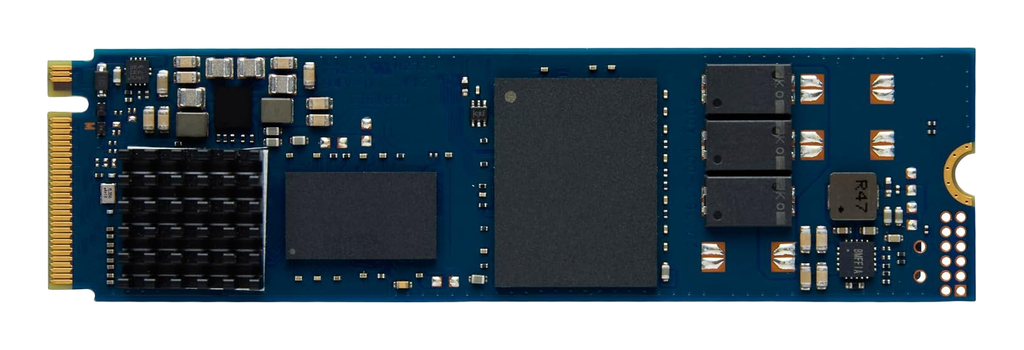

The Kingston DC2000B is a specialized high-performance PCIe 4.0 NVMe boot drive designed for rack-mount servers rather than general-purpose client computing. It is built on the Phison PS5018-E18 controller architecture paired with 3D TLC NAND and onboard DRAM caching, with firmware optimized for low-latency read operations typical of operating system loading and application logging. The drive integrates hardware-based Power Loss Protection via onboard tantalum capacitors, requiring a distinct PCB layout to accommodate enterprise-grade data integrity features within the compact 2280 form factor. The marked asymmetry between the 7,000 MB/s read speed and the 1,300 MB/s write speed is intentional to reduce thermal output and power consumption and optimize the drive for boot workloads and read-intensive server tasks. Due to the inclusion of PLP capacitors and the high-performance controller on a standard M.2 stick, the DC2000B has high thermal density, is designed for server chassis with forced (linear) airflow, and includes an integrated aluminum heatsink; use in a standard consumer PC case without direct airflow may result in rapid thermal throttling. The 960GB capacity indicates factory overprovisioning (reserved from a raw 1024GB) to enhance steady-state performance and endurance.

Key Specifications

• Capacity: 960GB
• Interface: PCIe Gen 4.0 x4 (NVMe 1.4)
• Controller: Phison PS5018-E18 (Enterprise Firmware)
• NAND Configuration: 3D TLC
• DRAM Cache: Yes (DDR4)
• Sequential Speeds: 7,000 MB/s Read / 1,300 MB/s Write
• Endurance: Rated for 0.4 DWPD over 5 years
• MTBF: 2,000,000 Hours
• Form Factor: M.2 2280
• Unique Features: Integrated Aluminum Heatsink, Hardware Power Loss Protection (PLP), End-to-End Data Path Protection

Hardware Alternatives

• Micron 7450 PRO 960GB: A primary competitor in the data center boot drive segment, utilizing a proprietary Micron controller and 176-layer NAND, generally offering higher write speeds than the DC2000B while targeting the same PLP-enabled M.2 niche.
• Samsung PM9A3 (M.2): Samsung’s equivalent data center drive; the PM9A3 often pushes higher sustained write performance while the DC2000B competes closely on read latency.
• Kingston KC3000: Shares underlying Phison E18 silicon with consumer high-end drives, but firmware algorithms, power management profiles, and the presence of physical PLP capacitors make the DC2000B distinct from this consumer relative.
• Seagate FireCuda 530: Another consumer high-performance drive that shares the same underlying controller family in reference designs, but differs from the DC2000B in firmware, power management, and the addition of PLP hardware.
