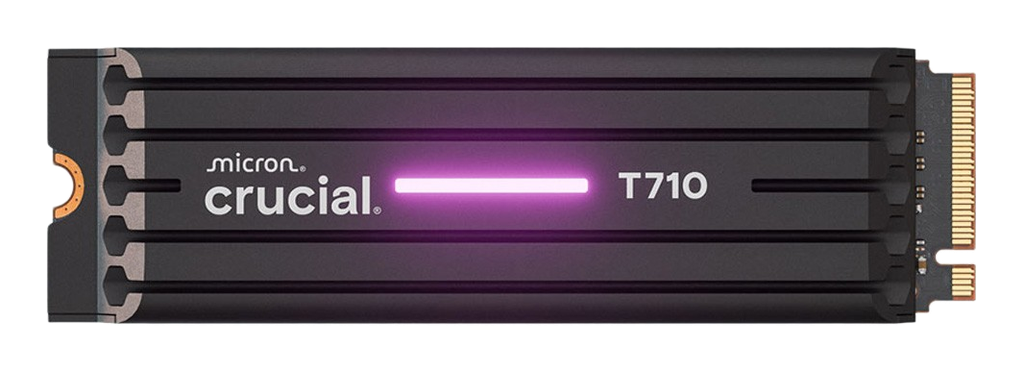

Crucial T710 2000GB

The Crucial T710 operates at the saturation point of the PCIe 5.0 x4 interface, using the Phison PS5026-E26 client controller with an 8-channel architecture and a dedicated LPDDR4 DRAM cache. It pairs Micron’s 232-layer 3D TLC NAND tuned for 2400 MT/s and uses the NVMe 2.0 protocol to maximize sequential I/O and reduce latency in heavy compute and workstation scenarios. Thermal mitigation is critical: the Phison E26 controller can reach >80°C rapidly under load and trigger aggressive thermal throttling, so a substantial passive heatsink or active cooling is recommended. The drive is optimized for DirectStorage workflows and high queue-depth asset streaming, while sustained write performance depends on the availability of its dynamic pseudo-SLC cache.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Controller: Phison PS5026-E26 (12nm process)
• NAND Flash: Micron 232-Layer 3D TLC tuned for 2400 MT/s
• DRAM Cache: Yes (LPDDR4)
• Sequential Read/Write: 14,500 MB/s / 13,800 MB/s
• Endurance (TBW): 1200 TBW (Estimated based on 2TB capacity standard)
• Encryption: TCG Opal 2.01 supported
• Thermal behavior: Phison E26 can reach >80°C under load and may trigger aggressive thermal throttling; requires substantial passive heatsink or active cooling
• Optimized for: DirectStorage workflows and high queue-depth asset streaming; sustained writes rely on dynamic pseudo-SLC cache

Hardware Alternatives

• Corsair MP700 PRO SE 2000GB: Utilizes the same controller and NAND combination, offering a comparable performance profile.
• Sabrent Rocket 5: Another E26-based drive tuned for the 14GB/s threshold.
• MSI Spatium M580: A direct hardware clone often distinguished only by cooling solutions and region-specific firmware revisions.
• Samsung 990 PRO 2000GB: While limited by the Gen4 interface, this drive is a primary competitor in random I/O performance and power efficiency, despite lower sequential throughput.
• Western Digital WD_BLACK SN850X 2000GB: Competes on sustained write consistency and proprietary controller efficiency, though it lacks the PCIe 5.0 bandwidth capabilities of the T710.
